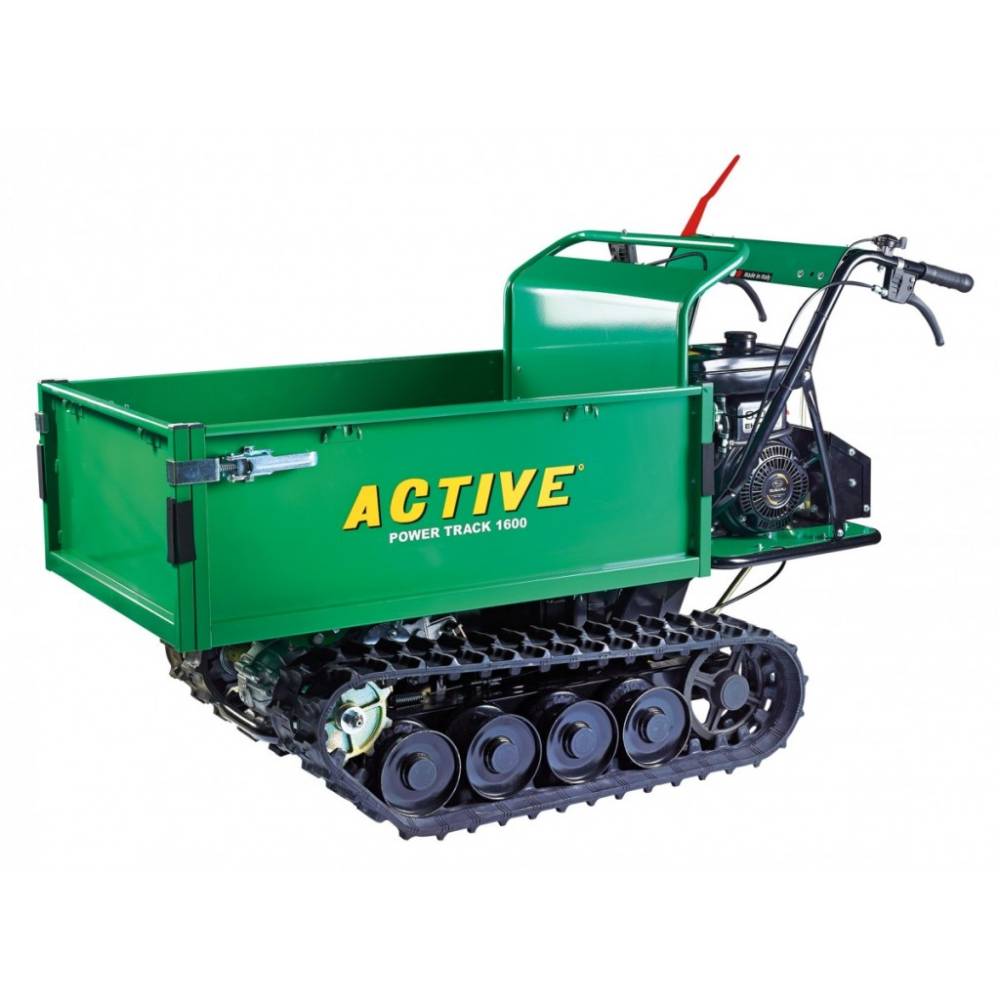

POWER TRACK ACTIVE 1600 EXT
FEATURES:
Engine: Subaru Robin EH17-2B
Engine type: 4 cycle single cylinder - O.V.H. overhead valve - air cooled
Displacement: 172 CC
Power (Hp/Kw): 6.0/4.4
Starting system: Recoil starter
Feeding: unleaded gasoliine
Fuel tank capacity (lt.): 3.6
Speed gearbox: 3 AV + 2 RM
Sprocket: steel
Clutch: mechanical by belt tenson
Brake: Internal expansion brake type
Ground pressure (no load/full load kg/cm2): 0.066/0.218
Slope limit no load: 25°
Slope limit full load: 15°
Platform tipping: Manual / hydraulic (H)
Weight (kg): 245 / 255 (H)
SPEED (Km/h):
1 AV: 1.93
2 AV: 3.87
3 AV: 6.0
1 RM: 1.84
2 RM: 3.68
OVERALL DIMENSION:
Width (mm): 700
Lenght (mm): 1800
Height (mm): 950
CRAWLER TRACK:
Contact area lenght (mm): 820
Pad width (mm): 180
Wheel base (mm): 490
Crawler (width x pitch x rach teeth): 180 x 60 x 37
Ground clearance (mm): 65
EXTENDABLE PLATFORM:
Width from / to (mm): 670 - 920
Lenght from / to (mm): 1000 - 1120
Internal height (mm): 300

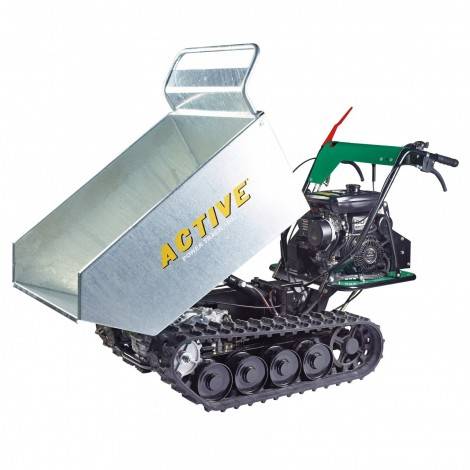

DUMPER PLATFORM:
Width (mm): 700
Lenght (mm): 1100
Internal height (mm): 400
Dumper Capacity (lt.): 235
Hot galvanized steel thickness (mm): 3
Max loading capacity (kg): 600
Code: ACT021
Price: €5,117.00
(including 19% VAT)
